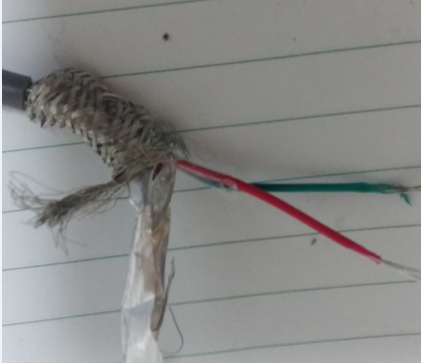

RVSVP3P485通訊電纜
RVSVP3P485通訊電纜適用于交流額定電壓300/300V及以下電器、儀表、電子設備及自動化裝置，電線（電纜）線芯長期允許工作溫度70℃，AV-90型、RVP-90型，長期允許工作溫度 90℃。
RVSVP3P485通訊電纜主要技術性能
1、電線（電纜）的導體電阻，應符合表列規定。
2、兩芯及以上電纜的J緣線芯應絞合成纜，外層絞合方向為右向。
3、電線（電纜）的J緣線芯應經受交流電壓50Hz 1500V實驗5min
RVSVP3P485通訊電纜主要技術性能
1、電線（電纜）的導體電阻，應符合表列規定。
2、兩芯及以上電纜的J緣線芯應絞合成纜，外層絞合方向為右向。
3、電線（電纜）的J緣線芯應經受交流電壓50Hz 1500V實驗5min
一、RVSVP3P485通訊電纜 300/300V銅芯聚氯乙稀J緣金屬屏蔽電線
|
標稱截面
|
根數/單線 標稱直徑
|
J緣厚度 規定值
|
平均外徑
mm |
2O°C時導體電阻Ω/Km不大于
2O°C Ω/Km ≤ |
參考重量
|
|
|
上限
|
銅芯
|
鍍錫銅芯
|
||||
|
0.08
|
1/0.32
|
0.4
|
1.9
|
225.2
|
229.6
|
4.14
|
|
0.12
|
1/0.40
|
0.4
|
2.0
|
144.1
|
146.9
|
6.66
|
|
0.2
|
1/0.50
|
0.4
|
2.1
|
92.3
|
94
|
7.4
|
|
0.3
|
1/0.60
|
0.4
|
2.2
|
64.1
|
65.3
|
7.88
|
|
0.4
|
1/0.70
|
0.4
|
2.3
|
47.1
|
48
|
10.14
|
二、RVSVP 300/300V銅芯聚氯乙稀J緣、金屬屏蔽、聚氯乙稀護套軟電纜（電線）
|
標稱截面
mm2 |
根數/單線 標稱直徑
mm |
J緣厚度 規定值
mm |
護套厚度規定值 mm
|
平均外徑
D |
2O°C時導體電阻Ω/Km不大于
Conductor Resistance at 2O°C Ω/Km ≤ |
參考重量
Kg/Km |
|
||||||||
|
下限
|
上限
|
銅芯
|
鍍錫銅芯
|
|
|||||||||||
|
1×0.08
|
7/0.12
|
0.4
|
0.4
|
2.4
|
2.9
|
247
|
254
|
9.3
|
|
||||||
|
1×0.12
|
7/0.15
|
0.4
|
0.4
|
2.4
|
3.0
|
158
|
163
|
10.6
|
|
||||||
|
1×0.2
|
12/0.15
|
0.4
|
0.4
|
2.6
|
3.2
|
92.3
|
95
|
13.2
|
|
||||||
|
1×0.3
|
16/0.15
|
0.5
|
0.4
|
2.9
|
3.5
|
69.2
|
71.2
|
16.1
|
|
||||||
|
1×0.4
|
23/0.15
|
0.5
|
0.4
|
3.0
|
3.7
|
48.2
|
49.6
|
18.8
|
|
||||||
|
1×0.5
|
28/0.15
|
0.5
|
0.4
|
3.1
|
3.8
|
39
|
40.1
|
19.9
|
|
||||||
|
1×0.75
|
42/0.15
|
0.5
|
0.4
|
3.4
|
4.1
|
26
|
26.7
|
24.1
|
|
||||||
|
1×1.0
|
32/0.20
|
0.6
|
0.6
|
4.1
|
4.9
|
19.5
|
20
|
34.1
|
|
||||||
|
1×1.5
|
48/0.20
|
0.6
|
0.6
|
4.3
|
5.2
|
13.3
|
13.7
|
39.9
|
|
||||||
|
1×2.5
|
77/0.20
|
0.7
|
0.6
|
4.9
|
6.0
|
7.98
|
8.21
|
64.6
|
|
||||||
|
2×0.08
|
7/0.12
|
0.4
|
0.4
|
3.2
|
4.2
|
247
|
254
|
16.8
|
|
||||||
|
2×0.08
|
7/0.12
|
0.4
|
0.4
|
2.4×3.5
|
2.9×4.2
|
247
|
254
|
14.9
|
|
||||||
|
2×0.12
|
7/0.15
|
0.4
|
0.6
|
3.7
|
4.9
|
158
|
163
|
22.3
|
|
||||||
|
2×0.12
|
7/0.15
|
0.4
|
0.6
|
2.8×4
|
3.4×4.9
|
158
|
163
|
20.5
|
|
||||||
|
2×0.2
|
12/0.15
|
0.4
|
0.6
|
4.1
|
5.3
|
92.3
|
95
|
28.3
|
|
||||||
|
2×0.2
|
12/0.15
|
0.4
|
0.6
|
3.0×4.4
|
3.6×5.3
|
92.3
|
95
|
25.7
|
|
||||||
|
2×0.3
|
16/0.15
|
0.5
|
0.6
|
4.8
|
6.2
|
69.2
|
71.2
|
41.1
|
|
||||||
|
2×0.3
|
16/0.15
|
0.5
|
0.6
|
3.5×5.1
|
4.2×6.2
|
69.2
|
71.2
|
37.3
|
|
||||||
|
2×0.4
|
23/0.15
|
0.5
|
0.6
|
5.1
|
6.6
|
48.2
|
49.6
|
45.1
|
|
||||||
|
2×0.4
|
23/0.15
|
0.5
|
0.6
|
3.6×5.4
|
4.4×6.6
|
48.2
|
49.6
|
43.7
|
|
||||||
|
2×0.5
|
28/0.15
|
0.5
|
0.6
|
5.3
|
6.8
|
39
|
40.1
|
43.7
|
|
||||||
|
2×0.5
|
28/0.15
|
0.5
|
0.6
|
3.7×5.6
|
4.5×6.8
|
39
|
40.1
|
45.9
|
|
||||||
|
2×0.75
|
42/0.15
|
0.5
|
0.6
|
5.8
|
7.4
|
26
|
26.7
|
59.7
|
|
||||||
|
2×0.75
|
42/0.15
|
0.5
|
0.6
|
4×6.1
|
4.8×7.4
|
26
|
26.7
|
55.2
|
|
||||||
|
2×1
|
32/0.2
|
0.6
|
0.6
|
6.4
|
8.2
|
19.5
|
20
|
73.9
|
|
||||||
|
2×1
|
32/0.2
|
0.6
|
0.6
|
4.3×6.7
|
5.2×8.3
|
19.5
|
20
|
69.4
|
|
||||||
|
2×1.5
|
48/0.20
|
0.6
|
0.8
|
7.3
|
9.2
|
13.3
|
13.7
|
95.5
|
|
||||||
|
2×1.5
|
48/0.20
|
0.6
|
0.8
|
4.9×7.6
|
6.0×9.3
|
13.3
|
13.7
|
88.9
|
|
||||||
|
3×0.12
|
7/0.15
|
0.4
|
0.6
|
3.9
|
5.1
|
158
|
163
|
26.3
|
|
||||||
|
3×0.2
|
12/0.15
|
0.4
|
0.6
|
4.5
|
5.8
|
92.3
|
95
|
38.9
|
|
||||||
|
3×0.3
|
16/0.15
|
0.5
|
0.6
|
5.1
|
6.5
|
69.2
|
71.2
|
48.7
|
|
||||||
|
3×0.4
|
23/0.25
|
0.5
|
0.6
|
5.4
|
6.9
|
48.2
|
49.6
|
61.7
|
|
||||||
|
3×0.5
|
28/0.15
|
0.5
|
0.6
|
5.6
|
7.1
|
39
|
40.1
|
66.5
|
|
||||||
|
3×0.75
|
42/0.15
|
0.5
|
0.6
|
6.1
|
7.8
|
26
|
26.7
|
73.7
|
|
||||||
|
3×1.0
|
32/0.2
|
0.6
|
0.8
|
7.2
|
9.1
|
19.5
|
20
|
100.4
|
|
||||||
|
3×1.5
|
48/0.2
|
0.6
|
0.8
|
8.0
|
10.0
|
13.3
|
13.7
|
132.5
|
|
||||||
|
4×0.12
|
7/0.15
|
0.4
|
0.6
|
4.5
|
5.8
|
158
|
163
|
35.4
|
|
||||||
|
4×0.2
|
12/0.15
|
0.4
|
0.6
|
4.9
|
6.2
|
92.3
|
95
|
45.5
|
|
||||||
|
4×0.3
|
16/0.15
|
0.5
|
0.6
|
5.5
|
7.0
|
69.2
|
71.2
|
57.8
|
|
||||||
|
4×0.4
|
23/0.15
|
0.5
|
0.6
|
5.9
|
7.5
|
48.2
|
49.6
|
67.9
|
|
||||||
|
5×0.12
|
7/0.15
|
0.4
|
0.6
|
4.8
|
6.2
|
158
|
163
|
40.7
|
|
||||||
|
5×0.2
|
12/0.15
|
0.4
|
0.6
|
5.3
|
6.7
|
92.3
|
95
|
52.9
|
|
||||||
|
5×0.3
|
16/0.15
|
0.5
|
0.6
|
6.0
|
7.6
|
69.2
|
71.2
|
66.8
|
|
||||||
|
5×0.4
|
23/0.15
|
0.5
|
0.6
|
6.4
|
8.1
|
48.2
|
49.6
|
78.4
|
|
||||||
|
6-7×0.12
|
7/0.15
|
0.4
|
0.6
|
5.2
|
6.6
|
158
|
163
|
45.8
|
|
||||||
|
6-7×0.2
|
12/0.15
|
0.4
|
0.6
|
5.7
|
7.2
|
92.3
|
95
|
60.3
|
|
||||||
|
6-7×0.3
|
16/0.15
|
0.5
|
0.6
|
6.5
|
8.2
|
69.2
|
71.2
|
76.7
|
|
||||||
|
6-7×0.4
|
23/0.15
|
0.5
|
0.8
|
7.3
|
9.2
|
48.2
|
49.6
|
|
|
||||||
|
|
|
||||||||||||||
|
標稱截面
mm2 |
根數/單線 標稱直徑
mm |
J緣厚度 規定值
mm |
平均外徑
mm |
2O°C時導體電阻Ω/Km不大于
2O°C Ω/Km ≤ |
參考重量
Kg/Km |
||||||||||
|
上限
|
銅芯
|
鍍錫銅芯
|
|||||||||||||
|
1×0.08
|
7/0.12
|
0.4
|
1.9
|
247
|
254
|
4.8
|
|||||||||
|
1×0.12
|
7/0.15
|
0.4
|
2.0
|
158
|
163
|
6.0
|
|||||||||
|
1×0.2
|
12/0.15
|
0.4
|
2.2
|
92.3
|
95
|
8.4
|
|||||||||
|
1×0.3
|
16/0.15
|
0.5
|
2.6
|
69.2
|
71.2
|
10.8
|
|||||||||
|
1×0.4
|
23/0.15
|
0.5
|
3.0
|
48.2
|
49.6
|
15.9
|
|||||||||
|
1×0.5
|
28/0.15
|
0.5
|
3.1
|
39
|
40.1
|
16.9
|
|||||||||
|
1×0.75
|
42/0.15
|
0.5
|
3.4
|
26
|
26.7
|
21
|
|||||||||
|
1×1.0
|
32/0.20
|
0.6
|
3.8
|
19.5
|
20
|
26.8
|
|||||||||
|
1×1.5
|
48/0.20
|
0.6
|
4.1
|
13.3
|
13.7
|
32.1
|
|||||||||
|
1×2.5
|
77/0.20
|
0.7
|
4.9
|
7.98
|
8.21
|
48.3
|
|||||||||
|
2×0.08
|
7/0.12
|
0.4
|
3.3
|
247
|
254
|
9.6
|
|||||||||
|
2×0.08
|
7/0.12
|
0.4
|
1.9×3.3
|
247
|
254
|
8.8
|
|||||||||
|
2×0.12
|
7/0.15
|
0.4
|
3.5
|
158
|
163
|
10.8
|
|||||||||
|
2×0.12
|
7/0.15
|
0.4
|
2.0×3.5
|
158
|
163
|
10.0
|
|||||||||
|
2×0.2
|
12/0.15
|
0.4
|
3.9
|
92.3
|
95
|
16.0
|
|||||||||
|
2×0.2
|
12/0.15
|
0.4
|
2.2×3.9
|
92.3
|
95
|
14.5
|
|||||||||
|
2×0.3
|
16/0.15
|
0.5
|
4.8
|
69.2
|
71.2
|
26.0
|
|||||||||
|
2×0.3
|
16/0.15
|
0.5
|
2.8×4.8
|
69.2
|
71.2
|
23.1
|
|||||||||
|
2×0.4
|
23/0.15
|
0.5
|
5.2
|
48.2
|
49.6
|
30.7
|
|||||||||
|
2×0.4
|
23/0.15
|
0.5
|
3.0×5.2
|
48.2
|
49.6
|
28.1
|
|||||||||
|
2×0.5
|
28/0.15
|
0.5
|
5.4
|
39
|
40.1
|
30.9
|
|||||||||
|
2×0.5
|
28/0.15
|
0.5
|
3.1×5.4
|
39
|
40.1
|
30.1
|
|||||||||
|
2×0.75
|
42/0.15
|
0.5
|
6.0
|
26
|
26.7
|
41.1
|
|||||||||
|
2×0.75
|
42/0.15
|
0.5
|
3.4×6.0
|
26
|
26.7
|
37.6
|
|||||||||
|
2×1
|
32/0.2
|
0.6
|
6.8
|
19.5
|
20
|
52.5
|
|||||||||
|
2×1
|
32/0.2
|
0.6
|
3.8×6.8
|
19.5
|
20
|
48.6
|
|||||||||
|
2×1.5
|
48/0.20
|
0.6
|
7.4
|
13.3
|
13.7
|
64.0
|
|||||||||
|
2×1.5
|
48/0.20
|
0.6
|
4.1×7.4
|
13.3
|
13.7
|
|
|||||||||
|
可根據現場使用環境不同，定制符合客戶使用環境的電纜
|
||||||
|
