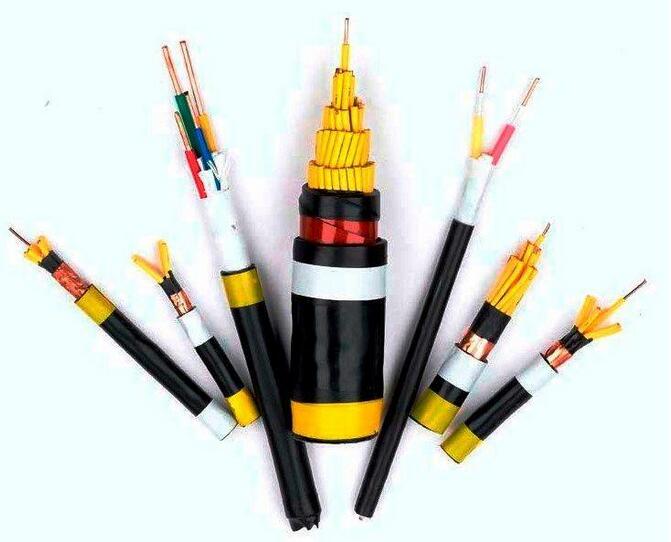

ZR-DW-TBY低煙無鹵電纜
1、 執行標準 Executive standard
QB/TWB2008-6
2、 產品特點及用途 Characteristics and uses
本產品適用于450/750及以下電力輸配電系統中輸配線路。
This product is adaptable to transmission and distribution circuit in electric power transmission and distribution electric system with 450/750 and below.
3、 型號、M稱 Type and designation
|
型 號 |
M 稱 |
主要用途 |
|
ZR-DW-TBY |
銅芯低煙無鹵阻燃聚烯烴J緣電線 |
固定敷設 |
|
ZR-DW-TBLY |
鋁芯低煙無鹵阻燃聚烯烴J緣電線 |
|
|
ZR-DW-TBYJY |
銅芯交聯乙烯J緣低煙無鹵阻燃聚烯烴J緣電線 |
|
|
ZR-DW-TBLYJY |
鋁芯交聯聚乙烯J緣低煙無鹵阻燃聚烯烴J緣電線 |
|
|
ZR-DW-TBYJYB |
銅芯交聯乙烯J緣低煙無鹵阻燃聚烯烴護套平行電纜 |
|
|
ZR-DW-TBLYJYB |
鋁芯交聯乙烯J緣低煙無鹵阻燃聚烯烴護套平行電纜 |
4、 電纜規格 Cable specification
|
型 號 |
額 定 電 壓 |
芯 數 |
標 稱 截 面 |
|
ZR-DW-TBY |
450/750 |
1 |
1.5-400 |
|
ZR-DW-TBLY |
450/750 |
1 |
2.5-400 |
|
ZR-DW-TBYJY |
450/750 |
1 |
2.5-400 |
|
ZR-DW-TBLYJY |
300/500 |
1 |
0.75-10 |
|
2,3,4,5 |
1.5-35 |
||
|
ZR-DW-TBYJYB |
300/500 |
2,3 |
0.75-10 |
|
ZR-DW-TBLYJYB |
300/500 |
2,3 |
2.5-10 |
5、 電線使用條件 Sevice characterlstlcs
導體的***高長期允許工作溫度：90℃；
Highest acceptable long-term operational temperature for conductor is 90℃
電纜短路時（***長持續時間不超過5S），導體的***高溫度：不超過250℃；
Highest temperature of conductor during short-circuit（longest duration cannot exceed 5 seconds）is not higher than 250℃
敷設時環境溫度應不低于-10℃.
Environmental temperature during installation should not be lower than -10℃.
6、 電纜標志 Cable Symbol
電纜標志應符臺GB6995的規定，在電纜的J緣層或電纜外護套應有廠M、電纜型號、額定電壓等連續標志。
Cable symbol should conform to regulations of GB6995 and insulation layer and sheath of cable should include manufacture name,cable type,rated voltage and such serial symbols like that.
