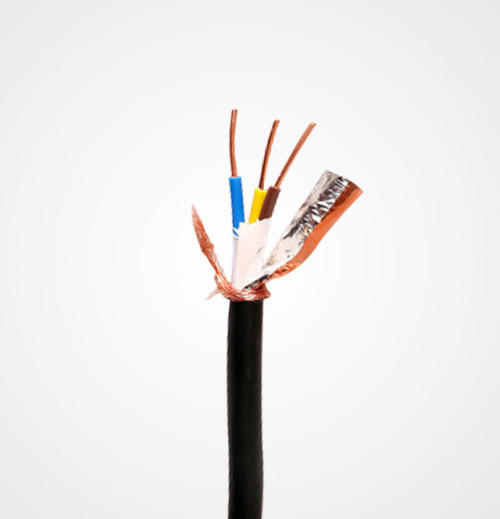

低煙無鹵屏蔽電纜產品特性：
低煙無鹵電線電纜在火焰燃燒情況下產生極少量煙霧，釋放的氣體不含鹵元素，當火災發生時，可大大減少對儀器、設備和人體的危害的環保型電纜。
低煙無鹵屏蔽電纜產品型號：
WDZ-RYYP 低煙無鹵多芯屏蔽電纜
低煙無鹵屏蔽電纜電纜結構：
導體：無氧裸銅絲
絕緣：低煙無鹵環保型
屏蔽：銅絲或鍍錫銅絲編織屏蔽
護套：低煙無鹵環保型
顏色：黑色(RAL9005) 灰色(RAL7001)
工作電壓： 450/750V
測試電壓：＜0.5mm2：2000V ≥0.5mm2：2500V
使用溫度范圍：-20℃~+90℃
***小彎曲半徑：12x電纜外徑
低煙無鹵屏蔽電纜產品規格：
| 型號 | 規格 | 近似密度公斤/KM | 標稱外徑/下限mm | 外徑上限mm |
| WDZ-RYYP | 0.5*2C | 48.0 | 5.8 | 6.4 |
| WDZ-RYYP | 0.5*3C | 59.1 | 6.1 | 6.7 |
| WDZ-RYYP | 0.5*4C | 72.5 | 6.7 | 7.3 |
| WDZ-RYYP | 0.5*5C | 86.6 | 7.4 | 8 |
| WDZ-RYYP | 0.5*6C | 100.7 | 8.1 | 8.7 |
| WDZ-RYYP | 0.5*7C | 110.5 | 8.1 | 8.7 |
| WDZ-RYYP | 0.5*8C | 125.0 | 8.8 | 9.4 |
| WDZ-RYYP | 0.5*9C | 142.8 | 9.7 | 10.3 |
| WDZ-RYYP | 0.5*10C | 158.7 | 10.4 | 11.6 |
| WDZ-RYYP | 0.5*11C | 170.8 | 10.8 | 12 |
| WDZ-RYYP | 0.5*12C | 176.0 | 10.8 | 12 |
| WDZ-RYYP | 0.5*13C | 192.2 | 11.4 | 12.6 |
| WDZ-RYYP | 0.5*14C | 201.0 | 11.4 | 12.6 |
| WDZ-RYYP | 0.5*15C | 216.4 | 12 | 13.2 |
| WDZ-RYYP | 0.5*16C | 226.6 | 12 | 13.2 |
| WDZ-RYYP | 0.5*17C | 242.7 | 12.7 | 13.9 |
| WDZ-RYYP | 0.5*18C | 251.5 | 12.7 | 13.9 |
| WDZ-RYYP | 0.5*19C | 260.2 | 12.7 | 13.9 |
| WDZ-RYYP | 0.5*20C | 273.8 | 13.1 | 14.3 |
| WDZ-RYYP | 0.5*21C | 286.4 | 13.4 | 14.6 |
| WDZ-RYYP | 0.5*22C | 305.5 | 14.4 | 15.6 |
| WDZ-RYYP | 0.5*23C | 322.2 | 14.9 | 17.3 |
| WDZ-RYYP | 0.5*24C | 330.9 | 14.9 | 17.3 |
| WDZ-RYYP | 0.5*25C | 344.1 | 15.2 | 17.6 |
| WDZ-RYYP | 0.5*26C | 351.5 | 15.2 | 17.6 |
| WDZ-RYYP | 0.5*27C | 360.2 | 15.2 | 17.6 |
| WDZ-RYYP | 0.5*28C | 377.1 | 15.8 | 18.2 |
| WDZ-RYYP | 0.5*29C | 385.9 | 15.8 | 18.2 |
| WDZ-RYYP | 0.5*30C | 394.6 | 15.8 | 18.2 |
| WDZ-RYYP | 0.75*2C | 65.0 | 6.7 | 7.3 |
| WDZ-RYYP | 0.75*3C | 78.7 | 7.1 | 7.7 |
| WDZ-RYYP | 0.75*4C | 96.0 | 7.8 | 8.4 |
| WDZ-RYYP | 0.75*5C | 114.0 | 8.5 | 9.1 |
| WDZ-RYYP | 0.75*6C | 131.9 | 9.2 | 9.8 |
| WDZ-RYYP | 0.75*7C | 144.2 | 9.2 | 9.8 |
| WDZ-RYYP | 0.75*8C | 162.9 | 10 | 11.2 |
| WDZ-RYYP | 0.75*9C | 185.9 | 11 | 12.2 |
| WDZ-RYYP | 0.75*10C | 206.1 | 11.7 | 12.9 |
| WDZ-RYYP | 0.75*11C | 222.1 | 12.1 | 13.3 |
| WDZ-RYYP | 0.75*12C | 229.5 | 12.1 | 13.3 |
| WDZ-RYYP | 0.75*13C | 249.0 | 12.7 | 13.9 |
| WDZ-RYYP | 0.75*14C | 260.1 | 12.7 | 13.9 |
| WDZ-RYYP | 0.75*15C | 279.8 | 13.5 | 14.7 |
| WDZ-RYYP | 0.75*16C | 292.2 | 13.5 | 14.7 |
| WDZ-RYYP | 0.75*17C | 313.4 | 14.2 | 15.4 |
| WDZ-RYYP | 0.75*18C | 324.5 | 14.2 | 15.4 |
| WDZ-RYYP | 0.75*19C | 336.4 | 14.2 | 15.4 |
| WDZ-RYYP | 0.75*20C | 352.4 | 14.6 | 15.8 |
| WDZ-RYYP | 0.75*21C | 368.8 | 14.8 | 17.2 |
| WDZ-RYYP | 0.75*22C | 393.5 | 15.7 | 18.1 |
| WDZ-RYYP | 1.0*2C | 71.2 | 7 | 7.6 |
| WDZ-RYYP | 1.0*3C | 89.7 | 7.5 | 8.1 |
| WDZ-RYYP | 1.0*4C | 111.8 | 8.3 | 8.9 |
| WDZ-RYYP | 1.0*5C | 134.6 | 9.1 | 9.7 |
| WDZ-RYYP | 1.0*6C | 157.7 | 10 | 11.2 |
| WDZ-RYYP | 1.0*7C | 174.6 | 10 | 11.2 |
| WDZ-RYYP | 1.0*8C | 198.2 | 10.9 | 12.1 |
| WDZ-RYYP | 1.0*9C | 226.9 | 12.1 | 13.3 |
| WDZ-RYYP | 1.0*10C | 253.0 | 13 | 14.2 |
| WDZ-RYYP | 1.0*11C | 273.9 | 13.4 | 14.6 |
| WDZ-RYYP | 1.0*12C | 285.2 | 13.4 | 14.6 |
| WDZ-RYYP | 1.0*13C | 309.3 | 14.2 | 15.4 |
| WDZ-RYYP | 1.0*14C | 324.7 | 14.2 | 15.4 |
| WDZ-RYYP | 1.0*15C | 350.1 | 14.8 | 17.2 |
| WDZ-RYYP | 1.0*16C | 366.8 | 14.8 | 17.2 |
| WDZ-RYYP | 1.0*17C | 393.2 | 15.7 | 18.1 |
| WDZ-RYYP | 1.0*18C | 408.6 | 15.7 | 18.1 |
| WDZ-RYYP | 1.5*2C | 97.8 | 8.3 | 8.9 |
| WDZ-RYYP | 1.5*3C | 124.5 | 8.8 | 9.4 |
| WDZ-RYYP | 1.5*4C | 153.7 | 9.7 | 10.3 |
| WDZ-RYYP | 1.5*5C | 185.6 | 10.7 | 11.9 |
| WDZ-RYYP | 1.5*6C | 217.1 | 11.8 | 13 |
| WDZ-RYYP | 1.5*7C | 240.9 | 11.8 | 13 |
| WDZ-RYYP | 1.5*8C | 274.0 | 12.8 | 14 |
| WDZ-RYYP | 1.5*9C | 314.6 | 14.2 | 15.4 |
| WDZ-RYYP | 1.5*10C | 351.6 | 15.1 | 17.5 |
| WDZ-RYYP | 1.5*11C | 380.5 | 15.6 | 18 |
| WDZ-RYYP | 1.5*12C | 394.5 | 15.6 | 18 |
| WDZ-RYYP | 2.0*2C | 114.4 | 9 | 9.6 |
| WDZ-RYYP | 2.0*3C | 147.5 | 9.6 | 10.2 |
| WDZ-RYYP | 2.0*4C | 186.3 | 10.7 | 11.7 |
| WDZ-RYYP | 2.0*5C | 226.6 | 11.8 | 12.8 |
| WDZ-RYYP | 2.0*6C | 266.1 | 13 | 14 |
| WDZ-RYYP | 2.0*7C | 296.8 | 13 | 14 |
| WDZ-RYYP | 2.0*8C | 338.3 | 14.1 | 15.1 |
| WDZ-RYYP | 2.0*9C | 388.3 | 15.5 | 17.9 |
| WDZ-RYYP | 2.5*2C | 127.5 | 9.5 | 10.1 |
| WDZ-RYYP | 2.5*3C | 165.7 | 10.1 | 11.3 |
| WDZ-RYYP | 2.5*4C | 209.0 | 11.2 | 12.4 |
| WDZ-RYYP | 2.5*5C | 254.7 | 12.4 | 13.6 |
| WDZ-RYYP | 2.5*6C | 300.0 | 13.7 | 14.9 |
| WDZ-RYYP | 2.5*7C | 335.3 | 13.7 | 14.9 |
| WDZ-RYYP | 2.5*8C | 382.1 | 14.7 | 17.1 |
| WDZ-RYYP | 4.0*2C | 181.5 | 11.1 | 12.3 |
| WDZ-RYYP | 4.0*3C | 239.1 | 11.9 | 13.1 |
| WDZ-RYYP | 4.0*4C | 304.1 | 13.2 | 14.4 |
| WDZ-RYYP | 4.0*5C | 372.6 | 14.6 | 15.8 |
| WDZ-RYYP | 4.0*6C | 439.9 | 15.9 | 18.3 |
| WDZ-RYYP | 4.0*7C | 494.5 | 15.9 | 18.3 |
| 0.0 | ||||
| WDZ-RYYP | 6.0*2C | 239.9 | 12.5 | 13.7 |
| WDZ-RYYP | 6.0*3C | 319.9 | 13.4 | 14.6 |
| WDZ-RYYP | 6.0*4C | 409.9 | 14.7 | 17.1 |
| WDZ-RYYP | 8.0*2C | 316.7 | 14.4 | 15.8 |
| WDZ-RYYP | 8.0*3C | 424.7 | 15.4 | 17.8 |
