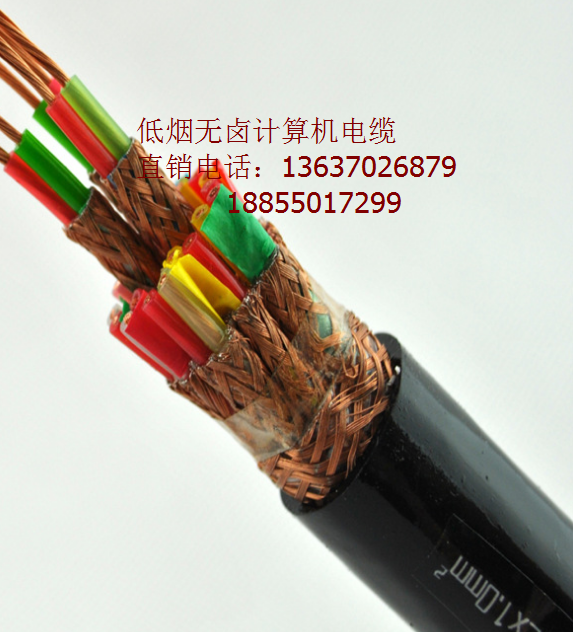

低煙無鹵屏蔽電纜WZR-DJYPE WZR-DJYP2E WZR-DJYP3E
一. 低煙無鹵屏蔽電纜WZR-DJYPE WZR-DJYP2E WZR-DJYP3E產品說明:
低煙無鹵屏蔽電纜WZR-DJYPE WZR-DJYP2E WZR-DJYP3E用途：低煙無鹵屏蔽電纜WZR-DJYPE WZR-DJYP2E WZR-DJYP3E具有低壓電容和低電感，并具有良好屏蔽性能和抗干擾性能，因而防爆性能優于一般計算機電纜和控制電纜．它適用于有防爆要求場合的集散系統和自動化檢測控制等要求低煙無鹵阻燃電路中作傳輸線．
二. 低煙無鹵屏蔽電纜WZR-DJYPE WZR-DJYP2E WZR-DJYP3E使用特性：
額定電壓：U0/U:300/500V.
工作溫度:聚乙烯絕緣不超過70℃,交聯聚乙烯絕緣不超過90℃,輻照交聯聚乙烯絕緣不超過105℃。
環境溫度:固定敷設-40℃,非固定敷設-15℃。
彎曲半徑:無鎧裝電纜應不小于電纜外徑的6倍;有鎧裝電纜應不小于電纜外徑的12倍℃。
三.計算機電纜主要技術指標：見表1：
四.低煙無鹵阻燃計算機電纜型號說明：
|
序號 |
項目 |
代號 |
說明 |
|
1 |
系列代號 |
WZR |
低煙無鹵阻燃 |
|
2 |
絕緣材料 |
Y |
聚乙烯PE |
|
3 |
屏蔽材料 |
P |
銅絲編織 |
|
4 |
護套材料 |
Y |
聚乙烯PE |
|
5 |
鎧裝材料 |
22 |
鋼帶鎧裝 |
|
6 |
規格 |
- |
填寫對數（單元芯數導體截面） |
五.低煙無鹵阻燃計算機電纜產品名稱與型號：表
|
序號 |
型號 |
名稱 |
|
1 |
WZR-DJYPE |
銅芯聚乙烯絕緣對絞銅絲編織屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
2 |
WZR-DJYPE22 |
銅芯聚乙烯絕緣對絞銅絲編織屏蔽鋼帶鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
3 |
WZR-DJYPE32 |
銅芯聚乙烯絕緣對絞銅絲編織屏蔽細鋼絲鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
4 |
WZR-DJYPEP |
銅芯聚乙烯絕緣對絞銅絲編織屏蔽銅絲編織總屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
5 |
WZR-DJYP2E |
銅芯聚乙烯絕緣對絞銅帶屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
6 |
WZR-DJYP2EP2 |
銅芯聚乙烯絕緣對絞銅帶屏蔽銅帶繞包總屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
7 |
WZR-DJYP3E |
銅芯聚乙烯絕緣對絞鋁箔/塑料薄膜復合帶屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
8 |
WZR-DJYP3EA53 |
銅芯聚乙烯絕緣對絞鋁箔/塑料薄膜復合帶屏蔽涂塑鋁帶粘結屏蔽單層鋼帶扎紋縱包鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
9 |
WZR-DJYJPE |
銅芯交聯聚乙烯絕緣對絞銅絲編織屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
10 |
WZR-DJYJPE22 |
銅芯交聯聚乙烯絕緣對絞銅絲編織屏蔽鋼帶鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
11 |
WZR-DJYJPE32 |
銅芯交聯聚乙烯絕緣對絞銅絲編織屏蔽細鋼絲鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
12 |
WZR-DJYJPEP |
銅芯交聯聚乙烯絕緣對絞銅絲編織屏蔽銅絲編織總屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
13 |
WZR-DJYJP2E |
銅芯交聯聚乙烯絕緣對絞銅帶屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
14 |
WZR-DJYJP2EP2 |
銅芯交聯聚乙烯絕緣對絞銅帶屏蔽銅帶繞包總屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
15 |
WZR-DJYJP3E |
銅芯交聯聚乙烯絕緣對絞鋁箔/塑料薄膜復合帶屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
16 |
WZR-DJYJP3EA53 |
銅芯交聯聚乙烯絕緣對絞鋁箔/塑料薄膜復合帶屏蔽涂塑鋁帶粘結屏蔽單層鋼帶扎紋縱包鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
17 |
WZR-DJFYJPE |
銅芯輻照交聯聚乙烯絕緣對絞銅絲編織屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
18 |
WZR-DJFYJPE22 |
銅芯輻照交聯聚乙烯絕緣對絞銅絲編織屏蔽鋼帶鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
19 |
WZR-DJFYJPE32 |
銅芯輻照交聯聚乙烯絕緣對絞銅絲編織屏蔽細鋼絲聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
20 |
WZR-DJFYJPEP |
銅芯輻照交聯聚乙烯絕緣對絞銅絲編織屏蔽銅絲編織總屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
21 |
WZR-DJFYJP2E |
銅芯輻照交聯聚乙烯絕緣對絞銅帶屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
22 |
WZR-DJFYJP2EP2 |
銅芯輻照交聯聚乙烯絕緣對絞銅帶屏蔽銅帶繞包總屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
23 |
WZR-DJFYJP3E |
銅芯輻照交聯聚乙烯絕緣對絞鋁箔/塑料薄膜復合帶屏蔽聚烯烴護套低煙無鹵阻燃計算機電纜 |
|
24 |
WZR-DJFYJPEA53 |
銅芯輻照交聯聚乙烯絕緣對絞鋁箔/塑料薄膜復合帶屏蔽涂塑鋁帶粘結屏蔽單層鋼帶扎紋縱包鎧裝聚烯烴護套低煙無鹵阻燃計算機電纜 |
